Top Features
1. High torque bi-direction 24VDC BLDC motor for heavy and continuous. traffic.
2. Boom arm is made of extruded aluminium alloy in round shape with provision for rubber gasket at bottom and rubber red plastic cover on top to accomodate LED strip.
3. Round cross section of boom arm is having better resistance to wind speed wall thickness of boom arm 1.4 +0.1 mm.
4. Maximum boom length up to 5 mtr.
5. In-built encoder offers smooth & low noise operation Pre-configurable smooth movement & safety feature.
6. Reverse on contact obstacle detection safety standard.
7. Barrier housing made of 2 mm thick galvanized further reinforced load carrying area of motor mounting.
8. Programmable opening and closing speed.
9. Programmable deceleration during opening and closing for smooth landing with jerk.
10. Programmable motor force as per boom arm length and load. 11. Version available for left and right hand.
12. Modern design with removable top cover.
Optional Accessories
1. Pendulum support
2. Photocell
3. Loop detector
4. Fixed support
5. Skirt kit
Application Areas:

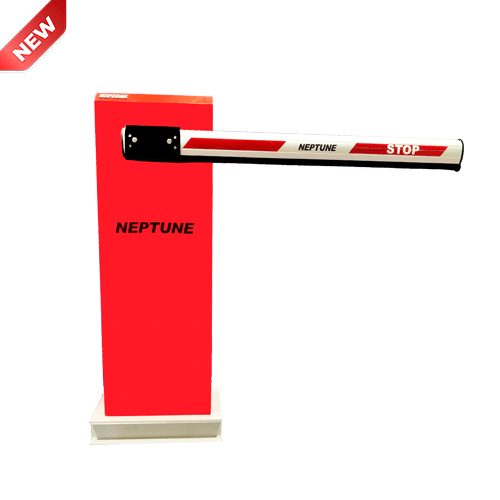

| Make | Neptune |
|---|---|
| Model | Powerlite |
| Power Supply | 220 - 240V AC ~ 50/60 Hz |
| Electric Motor | 24V DC brushless |
| Max. Power | 100 Watt |
| Max. Torque | 200 Nm (Max.) |
| Opening/Closing Speed | 1.8 to 5 sec. |
| Surface Treatment | Pre hot dip galvanized and dust painted |
| Encoder | Integrated with motor |
| Beam Type | Elliptical with rubber gasket and plastic |
| Protection Class | IP 65 |
| Use Frequency | 100% |
| Ambient temperature | -30 ~ 60 C |
| Relative Humidity | 95% |
| Operation Life | 10 million cycle |
| Remote control distance | ~ 30 mtr. |
| Height Of Boom | 900 mm from centre |
| Output for LED | 12V 5Amp. |
| Max. boom length | 6 mtr. (Telescopic) |
| Certification | CE |
