The Ideal Solution for Heavy Traffic

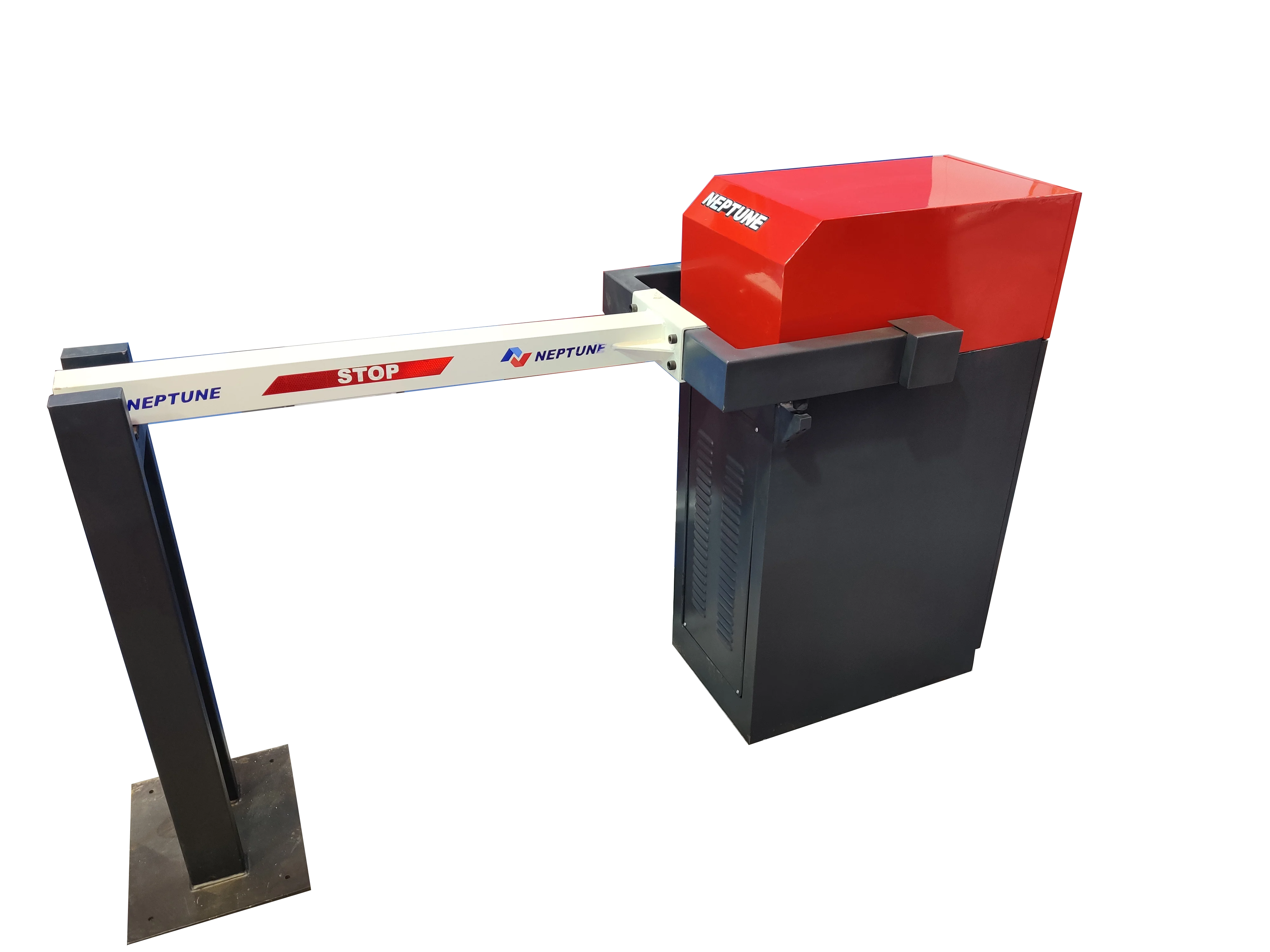

The Strong arm barrier of up to 5m is suitable for heavy continuous traffic. The barrier is designed with strong heavy arm an intermediate solution of normal traffic barrier and crash rated barrier.
Totally Flexible
The Strong arm barrier can be used in place of normal traffic barrier also as an alternate to crash barrier, required less space compare to crash barrier. Its electronic unit have inbuilt loop detector capable to integrate with any third party access control.
Long-term Reliability
Its very strong self supporting structure. Use of cutting edge materials and treatment such as galvanized, phosphating and dust painted plus tried and tested hydraulic technology, all combine to ensure long-life.
Leading-edge Technology
SMT microprocessor electronic technology is supplied standard to ensure exceptional performance. Its control unit have various digital input and output. Also have 4 programmable output with selectable 18 programs have digital display and function key for easy programming.
Electronic Intelligence
The electronic intelligence of the barrier can identify the barrier position, can generate maintenance alarm after set number of operation cycle.
| Make | SPECIFICATIONS | |
|---|---|---|
| Model | Strong Arm Barrier | |
| Drive | Hydraulic | |
| Use Frequency | Intensive | |
| Max. Boom Length | 5 Mtr. | |
| Power Supply | 380-440 VAC 3 Phase | |
| Absorbed Power | 750 Watt | |
| Boom Material | Composite Material | |
| Working Temperature | -10° C to +60° C | |
| Protection | IP-55 | |
| Open/Close Time | 3-6 Sec. | |
| Work Time | Programmable (0-4 min.) | |
| Pause Time | Programmable (0-4 min.) | |
| Rapid Connector | 5 Pin for Remote Receiver | |
| Operating Logic | Automatic Parking, Semi- Automatic Parking, condo etc. | |
| Optional Accessories | Photocell, traffic light, Flashing light, Buzzer, Induction loop etc. | |
| Certification | CE |
